Processor

• Equipment Type
• Internal CPU

• Application
• Consumer Desktop Computers

• Brand Name
• Intel

• CPU Support
• LGA1700, 14th Gen Intel Core

• Color
• Silver (Processor Heatspreader)

• Design
• 14 Cores (8 Performance, 8 Efficient), 20 Threads

• Dimension (L*W*H)
• 45 x 37.5 x 4.4 mm (Integrated Heat Spreader)

• Finish
• Nickel Plated IHS

• Frequency
• Base Clock: 2.1 GHz (E-core), 2.1 GHz (P-core), Turbo up to 5.4 GHz

• Humidity
• Operating: 5%-90% non-condensing

• IP Rating
• Not Rated for Ingress Protection

• Input Voltage
• VccIN as per board spec

• Installation Guideline
• Requires Compatible LGA1700 Motherboard, Latest BIOS Recommended

• Material
• Semiconductor (Silicon, Metal) Package

• Model No

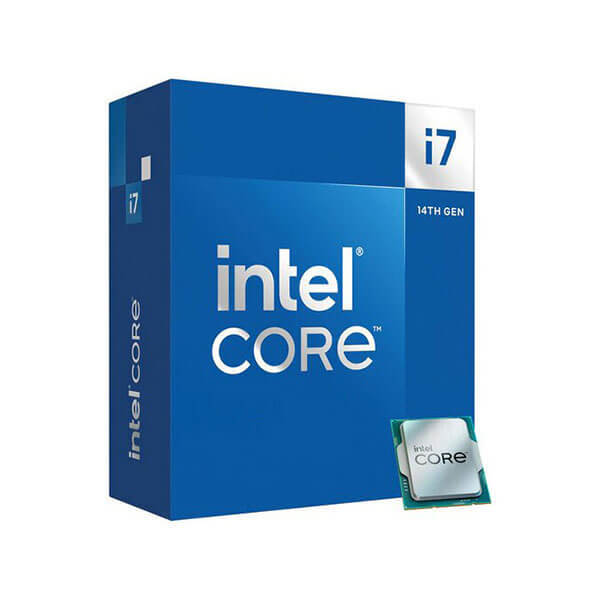

• Core i7-14700F

• Mounting Type
• Socket LGA1700

• Output Voltage
• N/A (Internal CPU Component)

• Part
• BX8071514700F

• Process
• 10nm (Intel 7) Process Technology

• Processing
• Multi-Core Processing

• Product Type
• Desktop Processor

• RAM
• Up to DDR5-5600/DDR4-3200 Supported (Depends on Motherboard)

• Service Period
• 3 Years Warranty

• Size
• Standard Desktop Processor Size (45 x 37.5 mm IHS)

• Standard
• PCIe 5.0, PCIe 4.0 Support

• Supply Voltage
• VccIN: 1.1 to 1.4V (Typical)

• Surface Treatment
• Polished Metal Finish

• Technique
• Multi-Threading, Turbo Boost Technology

• Temperature
• Operating Temperature: 0-100C

• Thickness
• 4.4 mm (Incl. Heatspreader)

• Tolerance
• Standard CPU Manufacturing Tolerances

• Usage
• High-Performance Computing, Desktop PCs, Gaming, Content Creation

• Weight
• Approx. 40g

• Equipment Type
• CPU (Processor)

• Application
• General Computing, Gaming, Office Work

• Brand Name
• Intel

• CPU Support
• LGA1200 Socket, 10th Gen Intel Core i5 Series

• Color
• Metallic Silver

• Design
• Comet Lake-S Architecture

• Dimension (L*W*H)
• 37.5 mm x 37.5 mm x 4.6 mm

• Finish
• Matte

• Frequency
• Base Clock 2.9 GHz / Turbo Boost Up to 4.3 GHz

• Humidity
• Operating: 20%-80% RH

• IP Rating
• Not Rated

• Input Voltage
• 0.72-1.35V

• Installation Guideline
• Install on compatible motherboard socket LGA1200 with adequate cooling

• Material
• Silicon, Integrated Circuit

• Model No
• Core i5-10400F

• Mounting Type
• Socket LGA1200

• Output Voltage
• Standard CPU Requirement

• Part
• BX8070110400F

• Process
• 14nm

• Processing
• 6 Cores / 12 Threads

• Product Type
• Desktop Processor

• RAM
• Up to 128GB DDR4 (RAM not included)

• Service Period
• As per Warranty

• Size
• Standard Desktop Processor

• Standard
• Intel Core i5 10th Gen

• Supply Voltage
• 0.72-1.35V

• Surface Treatment
• Nickel Plated IHS

• Technique
• CMOS Technology

• Temperature
• Operating: 0C to 100C

• Thickness
• 4.6 mm

• Tolerance
• Standard Processor Tolerance

• Usage
• For Desktop Computer Systems

• Weight
• Approx. 50 grams

• Equipment Type
• Processor

• Application
• Desktop PC, Professional Applications

• Brand Name
• Intel

• CPU Support
• LGA 1851 Socket, Intel 700 Series Chipsets

• Color
• Silver

• Design
• Hybrid Performance/Efficiency Cores

• Dimension (L*W*H)
• 45.0mm x 37.5mm (Processor Die)

• Finish
• Polished Heatspreader

• Frequency
• Base Clock 2.2 GHz, Turbo Up to 4.6 GHz

• Humidity
• 0%-90% (non-condensing)

• IP Rating
• Not Rated

• Input Voltage
• 12V (Motherboard VRM Supply)

• Installation Guideline
• Install on compatible LGA 1851 motherboards with proper cooling

• Material
• Silicon

• Model No
• Core Ultra 5 225F

• Mounting Type
• LGA 1851 Socket

• Output Voltage
• Depends on Motherboard Regulation

• Part
• BX807U5225F

• Process
• Intel 4 Process Technology (7nm)

• Processing
• 20 threads, 14 cores (6 P-cores + 8 E-cores)

• Product Type
• Desktop Processor

• RAM
• DDR5-5600, DDR4-3200 Supported

• Service Period
• 3 Years Warranty

• Size
• Standard Desktop CPU Size

• Standard
• Intel Ultra Series

• Supply Voltage
• 0.75V - 1.5V (Vcore)

• Surface Treatment
• Protected Die and Heatspreader

• Technique
• Hybrid Architecture

• Temperature
• Operating 0C to 100C

• Thickness
• Standard CPU thickness

• Tolerance
• Standard Intel Precision

• Usage
• High-Performance Computing

• Weight
• ~40g (Processor Only)

• Equipment Type
• Processor with Integrated Radeon Graphics

• Application
• Desktop Computing, Multimedia, Gaming

• Brand Name
• AMD

• CPU Support
• AMD Socket AM4

• Color
• Silver (Metallic)

• Design
• AM4 Socket Supported Design

• Dimension (L*W*H)
• 40mm x 40mm x 4mm (approx.)

• Finish
• Matte Metal with Laser-etched Markings

• Frequency
• Base Clock 3.6 GHz, Boost Clock up to 4.6 GHz

• Humidity
• Non-condensing storage and operating conditions

• Input Voltage
• 12V (Motherboard input)

• Installation Guideline
• Install on AM4 Socket with Compatible Motherboard and adequate cooling

• Material
• Semiconductor/Silicon

• Model No
• Ryzen 5 5600GT

• Mounting Type
• Socket AM4

• Output Voltage
• Depends on motherboard VRM

• Part
• 100-100001495BOX

• Process
• TSMC 7nm FinFET

• Processing
• 6 Cores / 12 Threads

• Product Type
• Desktop Processor with Integrated Graphics

• RAM
• DDR4 up to 3200MHz

• Service Period
• Within warranty duration

• Size
• Standard AM4 Processor Size

• Standard
• PCIe 3.0, DDR4 Memory Support

• Supply Voltage
• 1.0V (nominal)

• Surface Treatment
• Nickel-plated Heatspreader

• Technique
• Precision Semiconductor Packaging

• Temperature
• Operating Temperature Max. 95C

• Thickness
• 4mm (approx.)

• Tolerance
• Standard CPU Manufacturing Tolerances

• Usage
• Personal, Gaming, Office Desktop PC

• Weight
• ~72g (CPU only)

• Equipment Type
• Processing Unit

• Application
• Desktop Computing, Home & Office

• Brand Name
• AMD

• CPU Support
• AMD Socket AM5

• Color
• Silver

• Design
• Zen 4 Architecture

• Dimension (L*W*H)
• Approximately 40 x 40 x 4 mm (Processor only)

• Finish
• Nickel-plated Heatspreader

• Frequency
• Base Clock 3.5 GHz, Max Boost Up to 5.0 GHz

• Humidity
• 5%-90% Non-condensing

• Input Voltage
• Typ. 1.1V (Vcore)

• Installation Guideline
• Install in compatible AM5 motherboard socket with a supported cooler

• Material
• Silicon, Metal Lid

• Model No

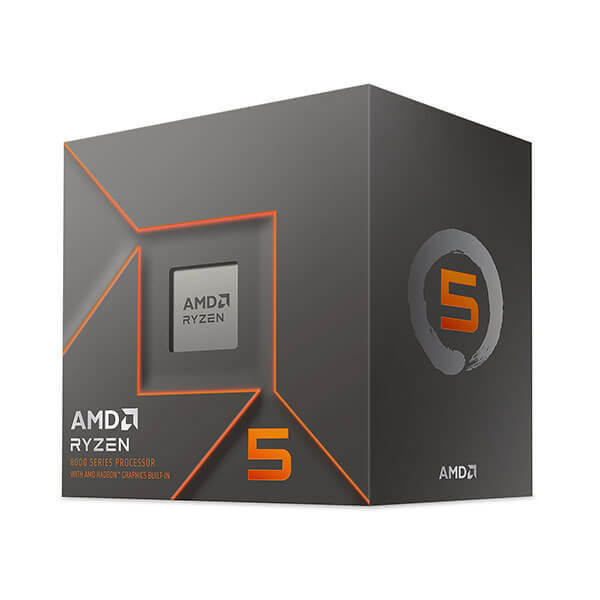

• Ryzen 5 8500G

• Mounting Type
• Socket (AM5)

• Output Voltage
• Motherboard regulated

• Part
• 100-100000997BOX

• Process
• 4nm FinFET CMOS

• Processing
• 6 Cores / 12 Threads

• Product Type
• Desktop Processor

• RAM
• DDR5, up to 5200 MT/s (dual channel)

• Service Period
• As per warranty terms

• Size
• Standard AM5 Processor Size

• Standard
• PCIe 4.0, AMD Specifications

• Supply Voltage
• Typ. 1.1V (Vcore)

• Surface Treatment
• Smooth Surface Lid

• Technique
• Integrated Chip

• Temperature
• Operating temperature: 0C to 95C

• Thickness
• Varies (Approx. 4 mm)

• Tolerance
• Standard industry tolerance

• Usage
• Personal Computers, Gaming, Workstations

• Weight
• Approx. 50g (Processor only)

• Equipment Type
• CPU

• Application
• Desktop PCs

• Brand Name
• Intel

• CPU Support
• LGA1700 Socket, 14th Gen Intel Core Motherboards

• Color
• Silver

• Design
• Hybrid Performance/Efficient Architecture

• Dimension (L*W*H)
• 37.5 x 37.5 mm

• Finish
• Metal Lid

• Frequency
• Performance-cores Base 2.5 GHz; Max Turbo 4.7 GHz

• Humidity
• 5% - 90%, non-condensing

• Input Voltage
• Supplied by Motherboard

• Installation Guideline
• Install into compatible LGA1700 motherboard socket with thermal paste and cooler

• Material
• Silicon, Metal Cap

• Model No
• i5-14400F

• Mounting Type
• LGA1700 Socket

• Part
• BX8071514400F

• Process
• Intel 7 Process Technology

• Processing
• 14 Cores (6 Performance-cores + 8 Efficient-cores)

• Product Type
• Desktop Processor

• RAM
• DDR4/DDR5, up to 128GB, Dual Channel

• Service Period
• 36 Months (Warranty)

• Size
• Standard LGA1700 Processor

• Standard
• Intel Desktop Processor Specification

• Supply Voltage
• 0.72V - 1.6V

• Surface Treatment
• Nickel Plated IHS

• Technique
• Advanced Semiconductor Fabrication

• Temperature
• Operating: 0C - 100C

• Thickness
• Approx. 4.4 mm

• Tolerance
• Refer to datasheet

• Usage
• Personal, Gaming, Business, Workstation

• Weight
• Approx. 37g

• Equipment Type
• Central Processing Unit (CPU)

• Application
• General computing, Gaming, Professional tasks

• Brand Name
• Intel

• CPU Support
• 12th Gen Intel Core i7

• Color
• Silver/Green (as per PCB and die)

• Design
• Intel Hybrid Architecture (Performance + Efficient Cores)

• Dimension (L*W*H)
• 45 mm x 37.5 mm x 4.4 mm (Package)

• Finish
• Standard Processor Package (integrated heatspreader)

• Frequency
• Base 2.1 GHz, Max Turbo 4.9 GHz

• Humidity
• Operating: 5%-90% non-condensing

• Input Voltage
• 12V (Supplied by motherboard VRM)

• Installation Guideline
• Install on compatible LGA1700 motherboard with proper thermal interface material and cooling

• Material
• Semiconductor (Silicon Die, Integrated Circuit)

• Model No
• BX8071512700F

• Mounting Type
• Socket (LGA1700)

• Part
• Core i7-12700F

• Process
• Intel 7 Process Technology (10nm Enhanced SuperFin)

• Processing
• x86-64 Architecture

• Product Type
• Processor (CPU)

• RAM
• DDR4/DDR5 Supported (Up to 128GB, dependent on motherboard)

• Service Period
• 3 Years Warranty by Manufacturer

• Size
• Socket LGA1700

• Standard
• Compliant to Intel LGA1700 platform

• Supply Voltage
• 1.0-1.55V (typical Vcore, depending on load)

• Surface Treatment
• Heat spreader, surface mount

• Technique
• Integrated circuit; advanced high-efficiency hybrid core design

• Temperature
• Operating: 0C to 100C (Tjunction Max)

• Thickness
• Standard for LGA1700 CPUs

• Tolerance
• Standard Intel Specifications

• Usage
• Desktop Computers

• Weight
• ~28 g (with package)

• Equipment Type
• CPU

• Application
• Gaming, Productivity, Office, General Computing

• Brand Name
• AMD

• CPU Support
• AMD Socket AM4

• Color
• Silver/Black

• Design
• Multi-core with SMT

• Dimension (L*W*H)
• 40mm x 40mm (Package)

• Finish
• Matte Metal

• Frequency
• Base: 3.6GHz, Boost: Up to 4.2GHz

• Humidity
• Non-Condensing

• Input Voltage
• 1.1V

• Installation Guideline
• Install on compatible AM4 motherboard socket

• Material
• Semiconductor (Silicon)

• Model No
• Ryzen 5 5500

• Mounting Type
• Socket AM4

• Part
• 100-100000457BOX

• Process
• 7nm FinFET

• Processing
• 6-Core/12-Thread

• Product Type
• Desktop Processor

• RAM
• Up to 128GB DDR4 (Dual Channel, 3200MHz)

• Service Period
• As Per Warranty

• Size
• Standard AM4 Package

• Standard
• AMD Ryzen family

• Supply Voltage
• 1.1V (typical)

• Surface Treatment
• Protected IHS

• Technique
• Chip Fabrication

• Temperature
• Operating: 0C to 95C

• Thickness
• Standard CPU specification

• Usage
• PC/Desktop Computing

• Weight
• Approx. 45g
